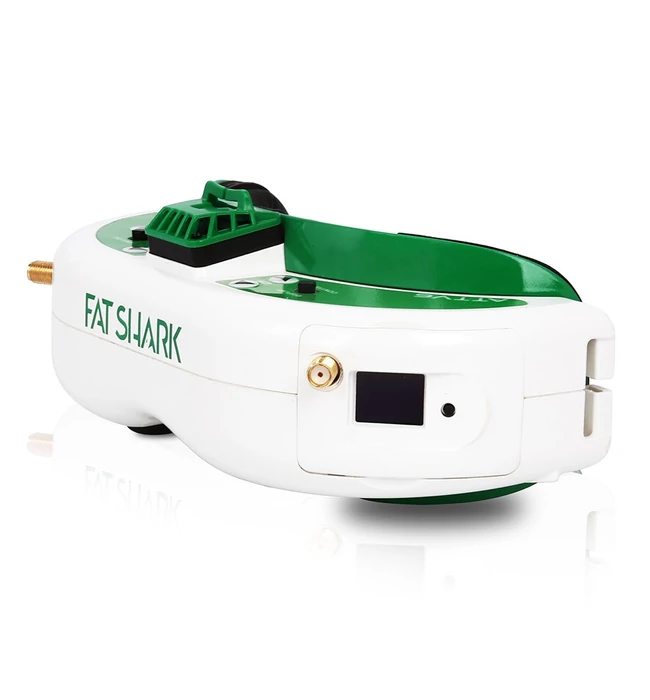

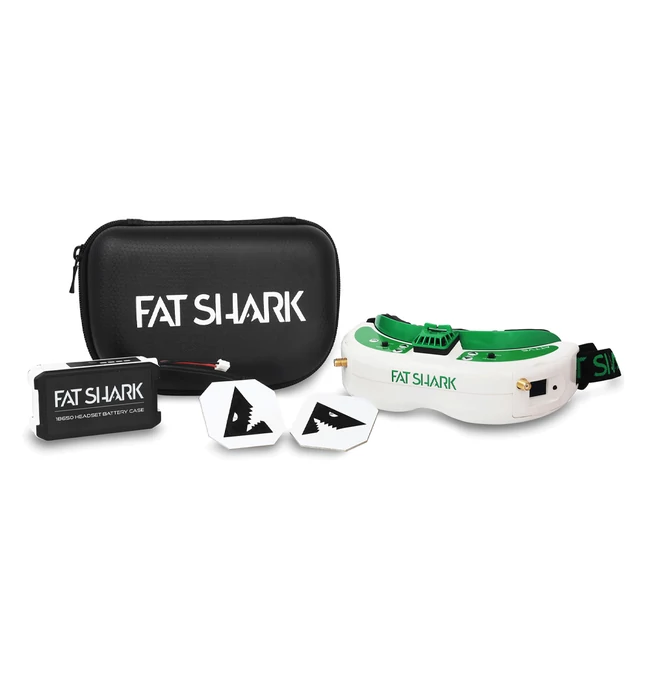

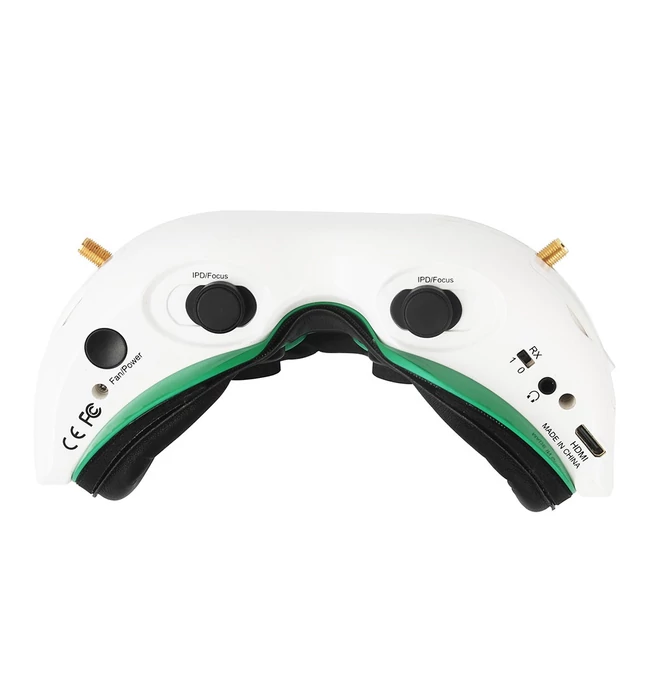

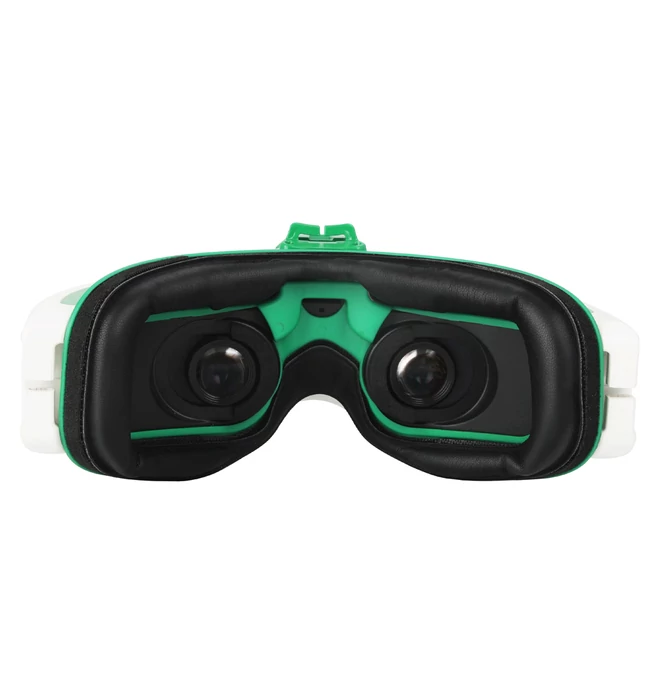

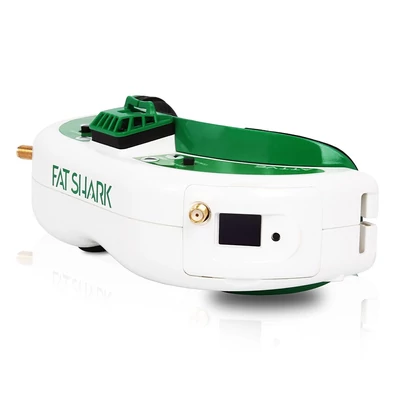

Fatshark Attitude V6 FPV Goggles

Fatshark Attitude V6 FPV Goggles

Ochelari de protecție Fat Shark Attitude V6 FPV (FSV1124). Ochelarii modulari UVGA LCOS FPV cu DVR integrat pentru înregistrare analogică.

Optics:

FOV (field of view):                     39 degrees diagonal

IPD (interpupillary distance):      54 to 74 mm (adjustable)

Focus:                                        +2 to -6 diopters (adjustable)

Electrical:

Power Supply:                            7 – 13V input voltage (2S – 3S Supply)

Power Consumption:                  320mA @ 7.5V input power (no RX module)

                                                   770mA @ 7.5V input power (Rapid

Analog DVR:

MicroSD support to 32 GB

Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)

File playback (native recording, no codec support)

Upgradeable via SD card

Interface:

3.5mm AV in/out port

 Power input port

3.5mm 3p earphone port

MicroSD

RF Module Bay

HT connector 3 pin internal connection

Power Button
